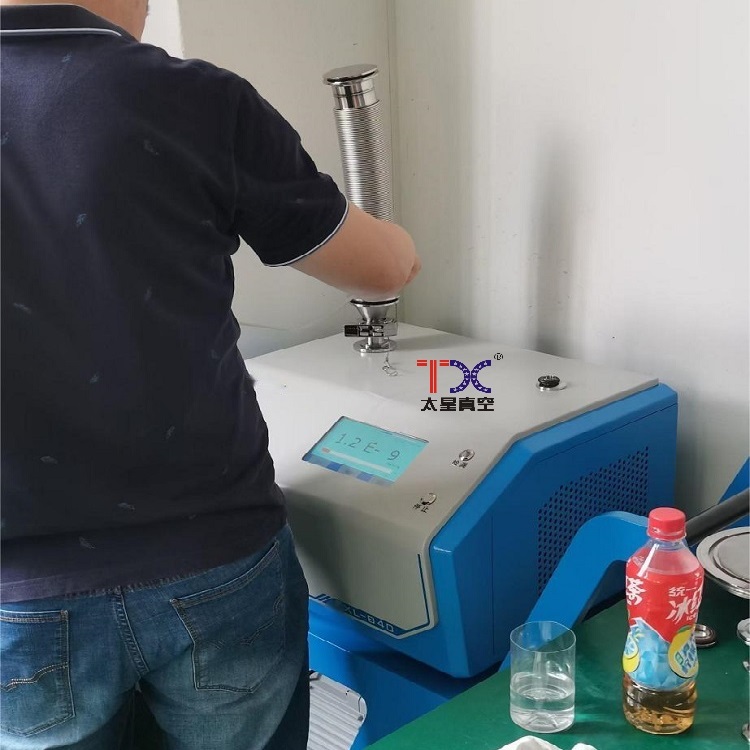

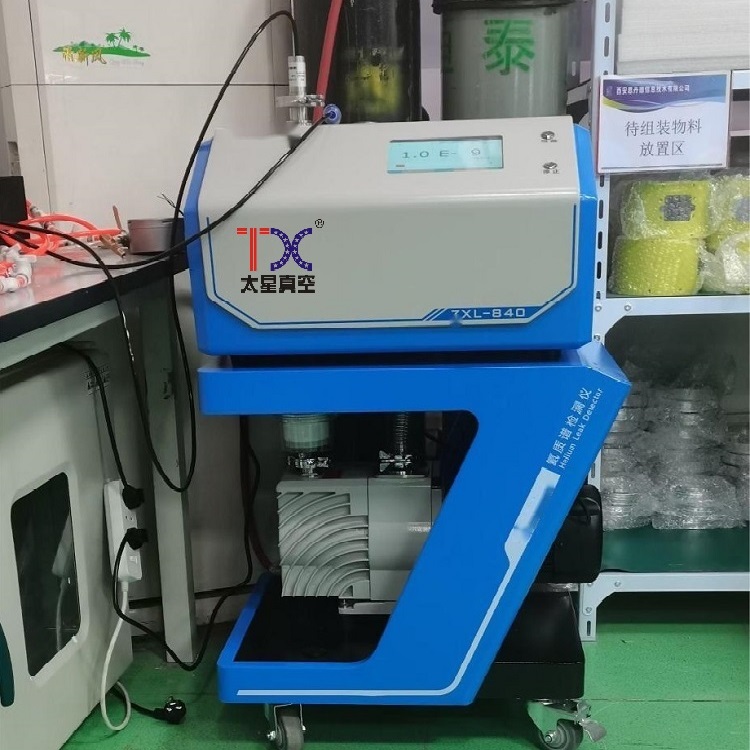

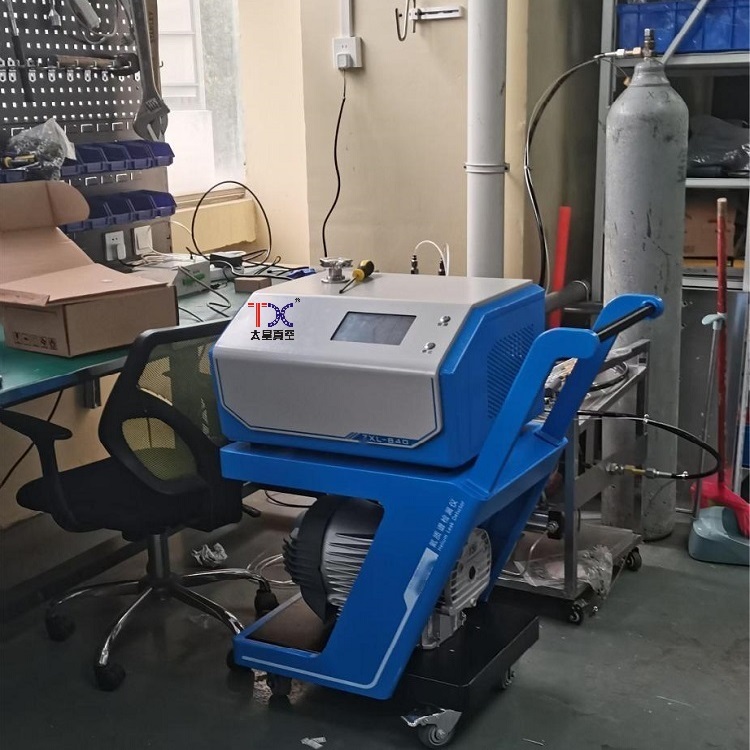

TXL-840D型 氦质谱检漏仪干式检漏 高洁净
返回列表
Product Introduction
●Portable and easy to move
●The entire machine has reached the international advanced level
Main configuration
1.Imported molecular pump
2.Imported mechanical pump
3.Built in standard leak hole
4.American AD amplifier
5.Mass spectrometry dedicated module
6.Delta LCD touch color screen
Specification
1. Minimum detectable leakage
rate: 3×10-13Pa ·m³/s
2. Leakage rate display range:
1×10⁻ ¹- 1×10-13Pa
·m³/s
3. Starting time: ≤ 3min
4. Response time: ≤ 0.5s
5. Maximum pressure at the leak
detection port: 1500Pa
6. Mechanical pump pumping
speed: 15 m³/h
7. Power requirements: 220V,
50Hz, single-phase, 10A
8. Working environment: 5-35 ℃
9. Relative humidity: ≤ 80%
10. Boundary dimension: 550(W)×420(D)×900(H)
11. Weight: 70kg
