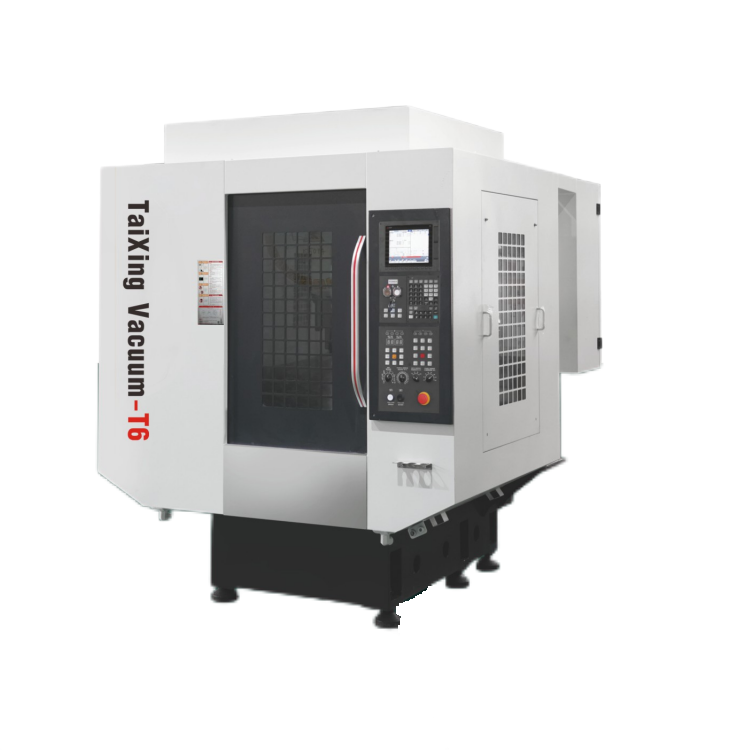

三轴高速钻攻机TX-T600 三轴数控加工中心
高速钻孔攻牙机
•主结构采用 米哈纳铸铁，结构坚固，轻便灵活，响应快，占地面积小;d-
•主轴直连，转速高，振动小，噪音低，温升低;能够长期高速加工;
•三轴采用精密直线滑轨;刚性高，噪音低，冲程快，稳定性好;
•三轴采用大直径滚珠丝杠，可满足不同进给速度和进给分辨率的要求
•三轴电机和滚珠丝杠直接驱动，定位精度高，无背间隙问题;
•机构设计完全符合人体工程学原理，机械钣金盖的设计基于机器使用的便利性
Mechanical characteristics
Items Unit
T-600 T-1000 T-2000
Stroke
X-axis stroke
mm
600
1000
2000
Y-axis stroke
mm
450
500
500
Z-axis stroke
mm
330
330
330
Spindlenose endto workbench
mm
150-480
150-480
150-480
Spindle
Spindle rotation connection
r.p.m
15000/20000
15000/20000
20000/24000
Spindletaper
BT30
BT30
BT30
Spinde motor (continuous/30 split stop
kw
5.5
5.5
5.5
X.Y.Z three-axis motor
kw
1.5/1.5/3.0
2.0/2.0/3.0
3.0/3.0/3.0
Workbench
Workbench area
mm
700*420
1100*500
2100*500
T-shaped groove (width
number of groovesXspacing)
mm
3-14*125
3-18*100
3-18*100
Maximum load of workbench
kg
300
400
600
Feed
Three-axisrapid displacement
mm/min
48000
48000
36000
Chip feed rate
mm/min
1-10000
1-10000
1-10000
Acouracy
Positioning accuracy
mm
±0.005/300
±0.005/300
±0.005/300
Repeatability
mm
±0.003/300
±0.003/300
±0.005/300
Others
System configuration
FANUC/MITSUBISH
Number of cutting tools
T
21
21
21
Maximum avalabletooldiameter
mm
60/80
60/80
60/80
Tool exchange method
Clamp arm type
Clamp arm type
Clamp arm type
Machine dimensions
mm
1950*2455*2400
2700*2300*2500
3200*2400*2800
Machine weight
kg
3300
4500
7500
*The specifications may change with the improvement ofquality,and we apologize for any inconveniencecaused.
